Metro Construction

Metro Construction

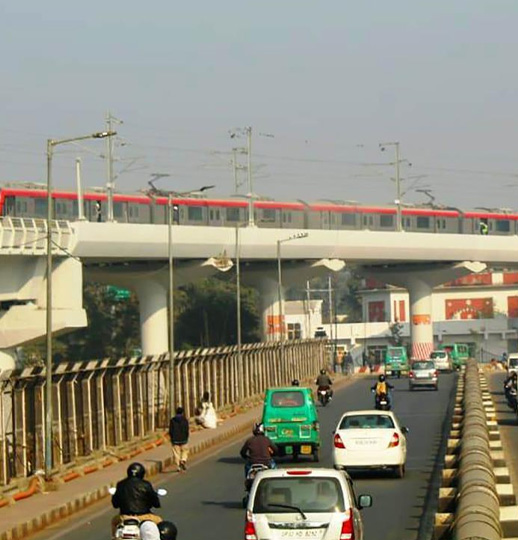

Construction methods adopted for the project include building elevated viaducts using pre-stressed concrete box girders placed on a single pier with pile or open foundation, the use of a tunnel boring machine (TBM) or the New Austrian Tunnelling method (NATM) for underground sections, and cut-and-cover with top-down method for underground stations.

The new metro line is designed to be a 1,435mm nominal gauge track with an axle load of 16t. The designed speed of the metro line is 80kmph, whereas scheduled speeds for the north-south and the east-west corridors are 34kmph and 32kmph respectively.

The north-south corridor will stretch from the Chaudhary Charan Singh (CCS) International Airport to Munshi Pulia for a total length of 22.87km, of which 19.43km will be elevated and 3.44km will be underground. The corridor will have 22 stations, including 19 elevated and three underground stations.

We are presents PAN INDIA. Our aim is to deliver high level of service to our clients with innovation and process to match the requirements to reach to desired results

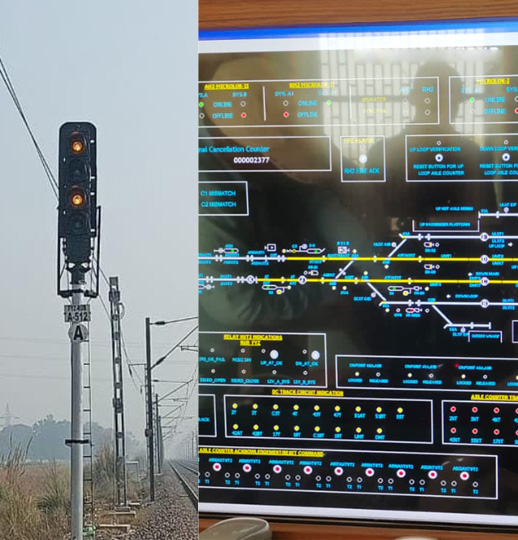

Signal Management

Lucknow Metro Rail Corporation (LMRC), today successfully commenced the signaling & integrated testing trials by moving the Metro train between Transport Nagar Metro station and Chaudhary Charan Singh Metro station. With this milestone, Lucknow Metro is now inching closer towards commissioning of the whole 22.878 km long North-South Corridor (Phase 1A) from CCS Airport to Munshipulia.>

The integrated testing and trials are for smooth operation of the trains having an interface with signaling, telecommunication, track and traction.

The trains have been provided with the latest state-of-the-art Communication-Based Train Control System (CBTC) Signalling system with Automatic Train Protection (ATP) for automatic braking to prevent any collision. The Automatic Train Supervision (ATS) system has been provided to ensure automatic management of train movement by Automatic Route Setting and Automatic Train Regulation by supervising the train movement continuously and optimizing the train movements in case of abnormalities.

This integrated signaling trial will also test for the Automatic Train Protection (ATP) and other aspects of Communication Based Train Control System (CBTC). The signaling testing is also being verified and validated by an international Independent Safety Assessor (ISA).

Earlier Track and traction team completed their work in record time. The underground section and tunnel section in Lucknow Metro has been provided with Rigid Overhead equipment for current collection to run the trains. A state of the art rigid OHE structure has been provided at a diamond crossing for the first time in Lucknow Metro near CCS Airport Station to move the trains from one line to another line which is available only in few of Metro worldwide.

The trial was started with the ceremonial

Security Management

  • Proven design, crashworthiness, adequate redundancy in the system,
  • Use of fire retardant material, fire smoke detection & protection,
  • Safe passenger evacuation in emergency, anti-climbing features of buffers.
  • The design of driver cab by ergonomic experts contributing to driver efficiency and serenity.
  • Trains to run in between stations automatically with minimum intervention of Train driver with the provision of Automatic Train Operation (ATO) system which also ensures that the train achieves timely, accurate and smooth station stops or stopping ahead of a restrictive point.
  • The Automatic Train Supervision (ATS) system to ensure automatic management of train movement by Automatic Route Setting and Automatic Train Regulation by supervising the train movement continuously and optimizing the train movements in case of abnormalities.
  • Emergency communication facilities including talkback facility for passenger for talking to train driver directly,
  • CCTV images inside trains to be displayed to Train Driver as well as at centralised Security Control Room.
  • Stay calm.
  • Any unattended item (bag, toy, briefcase, gift packet
  • Any suspicious person on unusual activity
  • Smoke or smell of something unusual. Individuals in act of absconding the item & departing from the area. Unusual attached batteries, wires, tanks, bottles, or bags that might contain chemicals
